Professional Silo Bulk Tanker Trailer,Ash Lime Powder Tanker
Trailer For Sale
Bulk cement tanker
trailer is suitable for carrying bulk cement, coal ash, lime power,
mineral power, fuly ash and other power material with the partice
diameter no more than 0.1mm,the bulk cement tank trailer is mainly
used in cement factories, cement warhouses and large construction
sites.The bulk cement tanker produce by us will help you reduce the
loss rate of cement power material and improve the loading and
unloading efficiency.
I. Feature
Material
The main frames using high-strength steel materials, have a light
dead-weight, ensure its resistance to twisting forces, shock and
bump, meet load requirements on different kinds of road.
Design
Use Latest flow structure design.The load capacity is bigger and
have a lower center of gravity.
Peformance
Adopt the domestic and foreign famous brand accessories and
parts,such as Weichai engine, Suk air compressor,BPW Axles,Jost
Landing Gear, ensure the durabitily of bulk cement trailer.Help you
save costs on operation and maintain.
Unloading Speed
The pipeline system is fitted with reasonable auxiliary blower and
anti-wear device to realize somoother unloading process and faster
unloading speed
II. Quality guarantee
1. More than 30 years experiences in trailer and truck
industrial,exported to more than 30 countries in Africa,Southeast
Asia.
2. Two years free warranty terms for the I beam,three to six month
free warranty terms for the Axles,suspension etc.
3. Spare parts support services.
4. Able to custom-built design as your requirment,ensure to meet
your local road regulation.
III.Specification
| Style | 3 Axles Bulker Cement Tanker Trailer |
| Dimension(L*W*H) | 11500*2500*3700 (mm) |
| Max. payload | 60000 (kgs)) |
| Volume | 30CBM to 50CBM |
| Tare weight | 9700 (kgs) |
| Kingpin | JOST 3.5” bolt-in |
| Landing gear | JOST 19” |
| Tire size | 12R22.5 (13sets) |
| Rim size | 9.00*22.5 (13sets) |
| Axle | BPW brand ,3 axles,13 tons |
| Susupension | Fuwa steel suspension with 9pcs of leafs spring |
| Brake system | Dual line with WABCO brand Re-6 emergency relay valve, MBA brand
T30/30 air chamber, 46L air tank |
| Electric system: | One unit of 24V 7-pin ISO standard socket; with brake light, turn
light, reverse light, side light, reflector, fog light; one set of
6-pin standard cable |
| Diesel Engine: | Shandong WeiChai 4100(40KW)(2000r/min) |
| Air compression: | SuZhou WBF-10/2 (10M3/min) (0.2MPA) |
| Painting | Zinc-rich & Polyurethane painting |

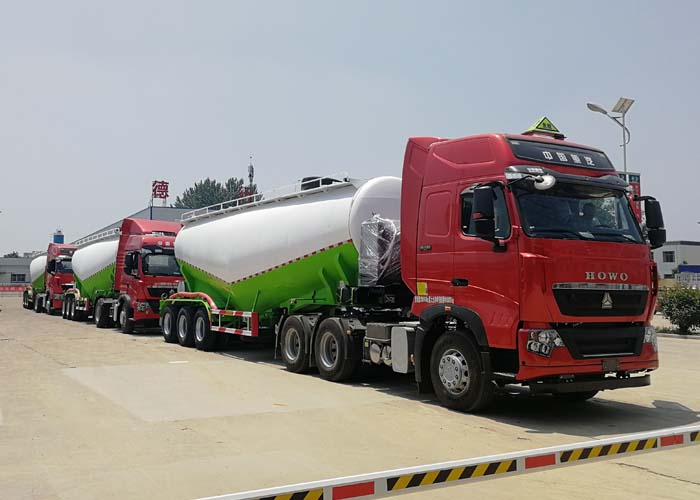

IV.Detailed Photo
