30 To 45CBM 12 Wheeler Cement Bulk Trailers For Sale Philippines
I. Quality guarantee
1.More than 30 years experiences in trailer and truck
industrial,exported to more than 30 countries in Africa,Southeast
Asia.
2.Two years free warranty terms for the I beam,three to six month
free warranty terms for the Axles,suspension etc.
3.Spare parts support services.
4.Able to custom-built design as your requirment,ensure to meet
your local road regulation.
II. Application
Bulk cement bulker trailer is suitable for carrying bulk cement,
coal ash, lime power, mineral power, fuly ash and other power
material with the partice diameter no more than 0.1mm.
III. Feature
1. The bulk cement trailer use no guide plate structure design,have
a light weight and low residue.
2. The main frames using high-strength steel materials, have a
light dead-weight, ensure its resistance to twisting forces, shock
and bump, meet load requirements on different kinds of road.
3. Adopt the domestic and foreign famous brand accessories and
parts,such as Weichai engine, Suk air compressor,BPW Axles,Jost
Landing Gear, ensure the durabitily of bulk cement trailer.Help you
save costs on operation and maintain.
4. Linear arrangement of the intake inlet line is smoother,make the
unloading faster.
IV.Specification
| Style | 30 TO 45 CBM 3 Axles Cement Bulker Tanker Trailer |
| Dimension(L*W*H) | 11500*2500*3700 (mm) |
| Max. payload | 60000 (kgs)) |
| Volume | 30 TO 45 CBM |
| Tare weight | 9700 (kgs) |
| Kingpin | JOST 3.5” bolt-in |
| Landing gear | JOST 19” |
| Tire size | 12R22.5 (13sets) |
| Rim size | 9.00*22.5 (13sets) |
| Axle | Fuwa brand ,3 axles,13 tons |
| Susupension | Fuwa steel suspension with 9pcs of leafs spring |
| Brake system | Dual line with WABCO brand Re-6 emergency relay valve, MBA brand
T30/30 air chamber, 46L air tank |
| Electric system: | One unit of 24V 7-pin ISO standard socket; with brake light, turn
light, reverse light, side light, reflector, fog light; one set of
6-pin standard cable |
| Diesel Engine: | Shandong WeiChai 4100(40KW)(2000r/min) |
| Air compression: | SuZhou WBF-12/2 (12M3/min) (0.2MPA) |
| Painting | Zinc-rich & Polyurethane painting |

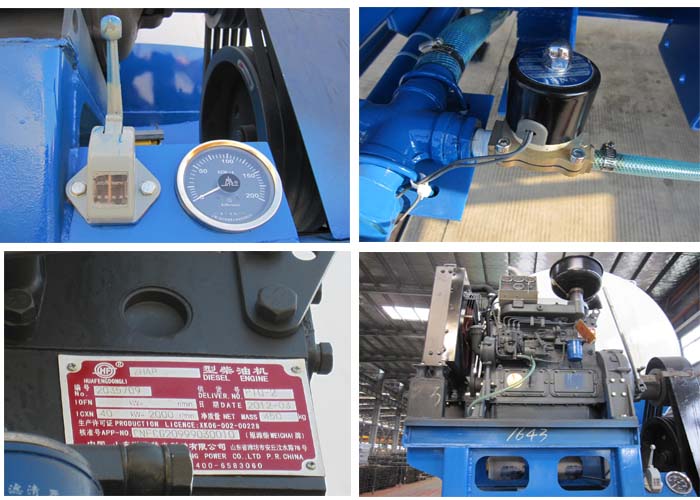

V. Detail Photo
