Durable 42000 Liters Road Tanker Trailer With Airbag Suspension For
Sale
I. Advantages of the tanker trailer
Design: The main frame and tank body of fuel tanker trailers are designed
by 3D-CAD, have a more reasonable structure.
Materials: The body of fuel tanker trailers are made of carbon steel, 6mm
thickness, easily maintenance and repair.
Performance: The fuel tanker trailers install valve protection box prevent the
leakage of transport medium from causing pollution and explosion.
Customization: Optional for a bottom loading fuel tanker trailer, can install
the API adaptor valves,anti-overfill and vapor recovery system as
your request.
II. Transport medium
The Tanker Trailer can be used for carry alcohol,oil,fuel etc.
III. How to ensure the quality and service?
1.More than 30 years experiences in trailer and truck industrial,
exported to more than 30 countries in Africa, Southeast Asia.
2. Two years free warranty terms for the I beam,three to six month
free warranty terms for the Axles, suspension etc.
3. Spare parts support services.
4. Able to design and produce the tanker trailer as your
requirment, ensure to meet your local road regulation.
IV. Specification
| Style | 42,000L 3 Axle Fuel Tank Trailer |
| The thickness of shell&dish | 5mm/ Q345B carbon mild steel |
| Compartment: | 3 |
| Dimension(L*W*H)mm: | 11800*2500*3750 |
| Payload(kgs): | 42000 |
| Tare weight(kgs): | 9500 |
| Kingpin | JOST 3.5” bolt-in |
| Landing gear | JOST 19” C200T |
| Tire size | 385/65R22.5 (7 sets) |
| Rim size | 11.75*22.5 (7 sets) |
| Axle | Chinese Brand 13ton |
| Leafs spring | Airbag suspension without lifting |
| Brake system | Dual line with WABCO brand Re-6 emergency relay valve, MBA brand
T30/30 air chamber, 46L air tank |
| Manhole: | Φ500 |
| Discharge and bottom valve | Pneumatic 3” |
| Prime & Topcoat painting | Zinc-rich & Polyurethane painting |

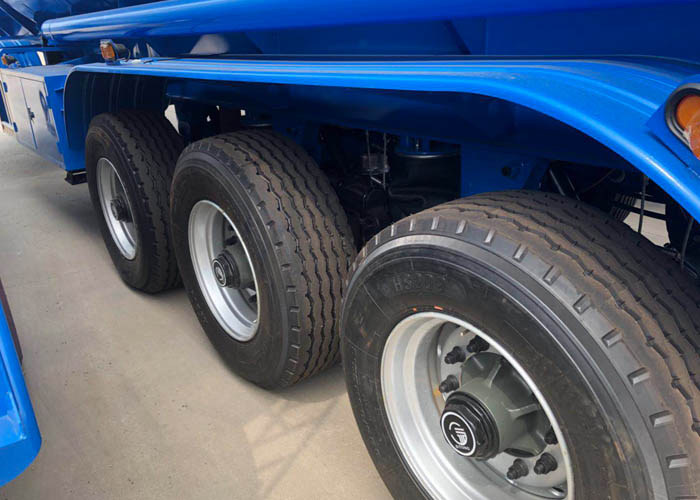

V. Detailed Photo
