Triple Axle Flatbed Trailer Semi Trailer Flatbed Flatbed Towing
Trailer
Semi Trailer Flatbed Introduction
The structure of the Triple Axle Flatbed Trailer is made of
high-strength international steel, which has low dead weight,
anti-twist, anti-seismic, and can adapt to the load-carrying
capacity of various road surfaces. The longitudinal beam adopts
automatic submerged arc welding, and the frame is shot peened.
Structure, reasonable design, high strength, hold the load under
progressive impact.
Flatbed Towing Trailer Specification
| Kingpin: | Bolt-in type 2” |
| Landing gear: | Two-speed manual operation 19” |
| Tire size: | Triangle brand 12R22.5 (13 sets) |
| Rim size: | 9.00*22.5(13 sets) |
| Axle: | 3 Axle, 12 Tons |
| Suspension | Two axle spring suspension + first axle airbag suspension with
lifting |
| Brake system: | Dual line with Re-6 emergency relay valve, T30/30 air chamber, 46L
air tank |
| Electric system: | One unit of 24V 7-pin ISO standard socket; with brake light, turn
light, reverse light, side light, reflector, fog light; one set of
6-pin standard cable |
| Container locks | 12(for 1x20GP,2X20GP,1X40HQ) |
| Painting: | Two coat of anti-corrosion prime; one coat of finish painting |
| Accessory: | One tool box; one set of standard tool,Two spare tires carrier,one
set 60 liters water tank |
Triple Axle Flatbed Trailer Description
1. The whole vehicle shape 12450*2500*1550 (flat height); 2.
2. 12 sets of container locks, can carry 1 40ft, 2 20ft or 1 20ft
standard container.
3. This vehicle is equipped with Zhengyang American-style 13T axle,
triangle 12R22.5 vacuum tires, American-style mechanical
suspension; front axle mid-airbag lift.
4. 1 tool box on the left side, a 60L water tank on the left side.
5. longitudinal beam upper wing plate 14/Q345, lower wing plate
16/Q345, web plate 6mm/Q345, height 500mm; side beam 16# channel
steel, commonly known as 10# channel steel, bottom plate 2.5mm
pattern.

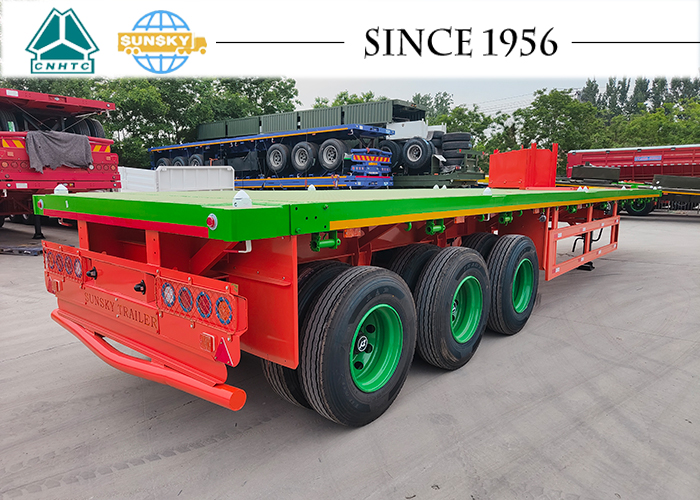

Flatbed Towing Trailer IMAGE
Quality guarantee of side wall trailer factory
1. More than 30 years experiences in trailer and truck industrial,
exported to more than 30 countries in Africa, Southeast Asia.
2. Twenty-Four month free warranty terms for the I beam, three to
six month free warranty terms for the Axles, suspension etc.
3. Spare parts support services.
4. Able to custom-built design as your requirement, ensure to meet
your local road regulation.
