I. Application

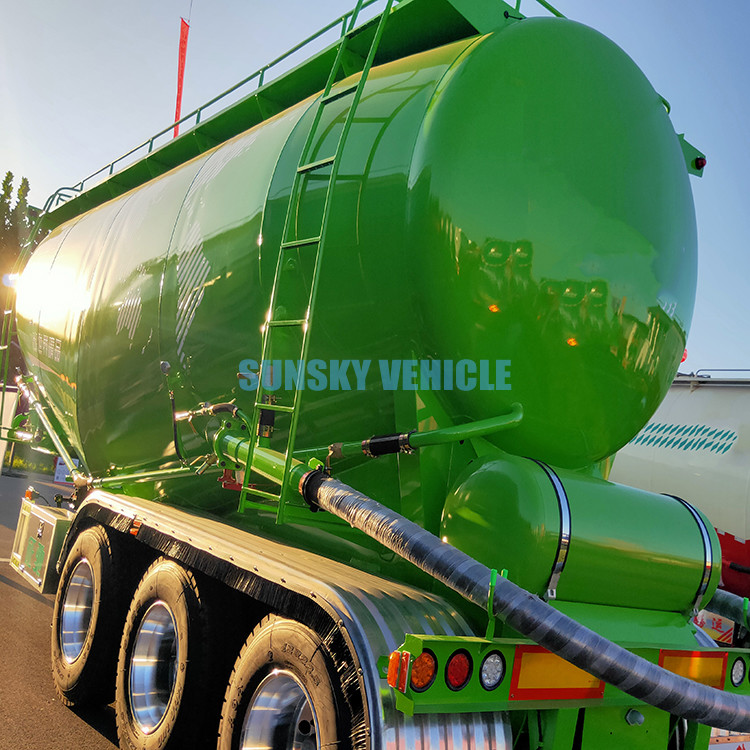

Bulk cement bulk trailer is suitable for carrying bulk cement, coal
ash, lime power, mineral power, fuly ash and other power material
with the particle diameter no more than 0.1mm,the bulk cement tank
trailer is mainly used in cement factories, cement warehouses and
large construction sites.
II.Feature
1. Tank body of bulk cement tanker trailers are made of high
strength wear-resistant steel, have lightweight and more durable.
2. The Bulk cement tanker trailer with no guide plate
structure,have lighter weight,lower residue.
3. Wide area fluidized bed with a large angle tanker,so unloading
faster and less residue

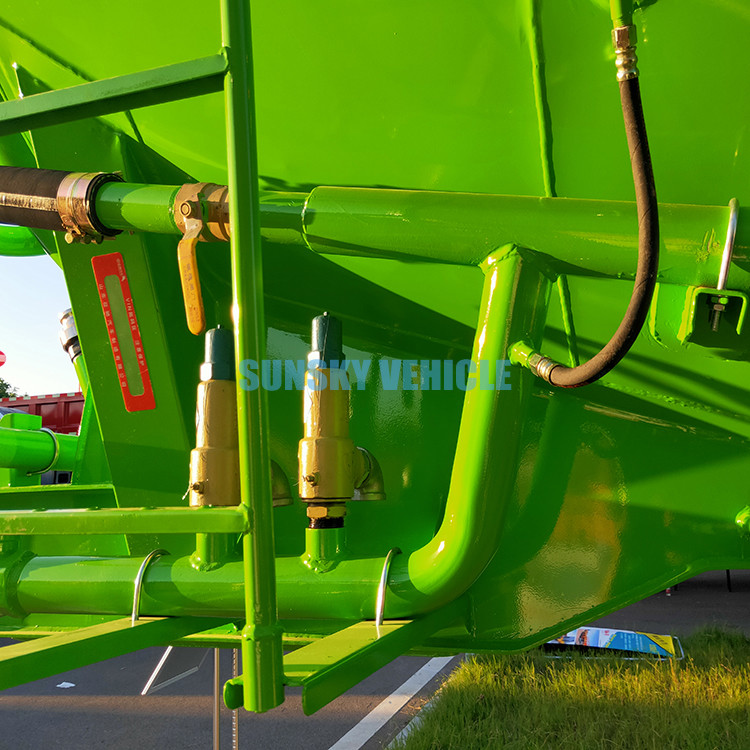

4. Linear arrangement of the intake inlet line is smoother,make the
unloading faster.
III.Specification
| Style | 40CBM 3 Axles Bulk Cement Tanker Trailer |
| Dimension(L*W*H) | 11500*2500*3700 (mm) |
| Max. payload | 50000 (kgs)) |
| Volume | 40CBM |
| Tare weight | 9700 (kgs) |
| Kingpin | JOST 3.5” bolt-in |
| Landing gear | JOST 19” |
| Tire size | 12R22.5 (13sets) |
| Rim size | 9.00*22.5 (13sets) |
| Axle | BPW brand ,3 axles,13 tons |
| Susupension | Fuwa steel suspension with 9pcs of leafs spring |
| Brake system | Dual line with WABCO brand Re-6 emergency relay valve, MBA brand
T30/30 air chamber, 46L air tank |
| Electric system: | One unit of 24V 7-pin ISO standard socket; with brake light, turn
light, reverse light, side light, reflector, fog light; one set of
6-pin standard cable |
| Diesel Engine: | Shandong WeiChai 4100(40KW)(2000r/min) |
| Air compression: | SuZhou WBF-10/2 (10M3/min) (0.2MPA) |
| Painting | Zinc-rich & Polyurethane painting |
IV.Quality guarantee
1. More than 30 years experiences in trailer and truck
industrial,exported to more than 30 countries in Africa,Southeast
Asia.
2. Two years free warranty terms for the I beam,three to six month
free warranty terms for the Axles,suspension etc.
3. Spare parts support services.
4. Able to custom-built design as your requirement,ensure to meet
your local road regulation.
