Application
Cement tanker trailer is suitable for carrying bulk cement, coal
ash, lime power, mineral power, fly ash and other power material
with the particle diameter no more than 0.1mm,the bulk cement tank
trailer is mainly used in cement factories, cement warehouses and
large construction sites.
Material
Tank body of bulk cement tanker trailers are made of high strenth
wear-resistant steel, have lightweight and more durable.
Design
The bulk cement trailer use no guide plate structure design,have a
light weight and low residue.
Peformance
Special welding marchine to weld the tank body from one side but
form smooth, sturdy and uniform welds on both sides.Use advanced
welding technology and experienced welder to make sure the high
safety and no air leak.
Unloading Speed
The pipeline system is fitted with reasonable auxiliary blower and
anti-wear device to realize somoother unloading process and faster
unloading speed.
Specification
| Style: | 3 Axles 45 CBM Bulk Cement Tank Trailer |
| Dimension(L*W*H): | 13000 *2500*3990 (mm) |
| Max. Payload: | Custom-built |
| Volume: | 45 CBM /Custom-built |
| Tare weight: | 13500 (kgs) |
| Kingpin: | JOST 3.5” bolt-in |
| Landing gear: | JOST 19” |
| Tire size: | 12R22.5 (13sets) |
| Rim size: | 9.00*22.5 (13sets) |
| Axle: | Fuwa / BPW brand ,3 axles |
| Suspension: | Steel suspension |
| Brake system: | Dual line with WABCO brand Re-6 emergency relay valve, MBA brand
T30/30 air chamber, 46L air tank |
| Electric system: | One unit of 24V 7-pin ISO standard socket; with brake light, turn
light, reverse light, side light, reflector, fog light; one set of
6-pin standard cable |
| Diesel Engine: | Tianhe Brand |
| Air compression: | SuZhou WBF Brand |
| Painting: | Zinc-rich & Polyurethane painting |

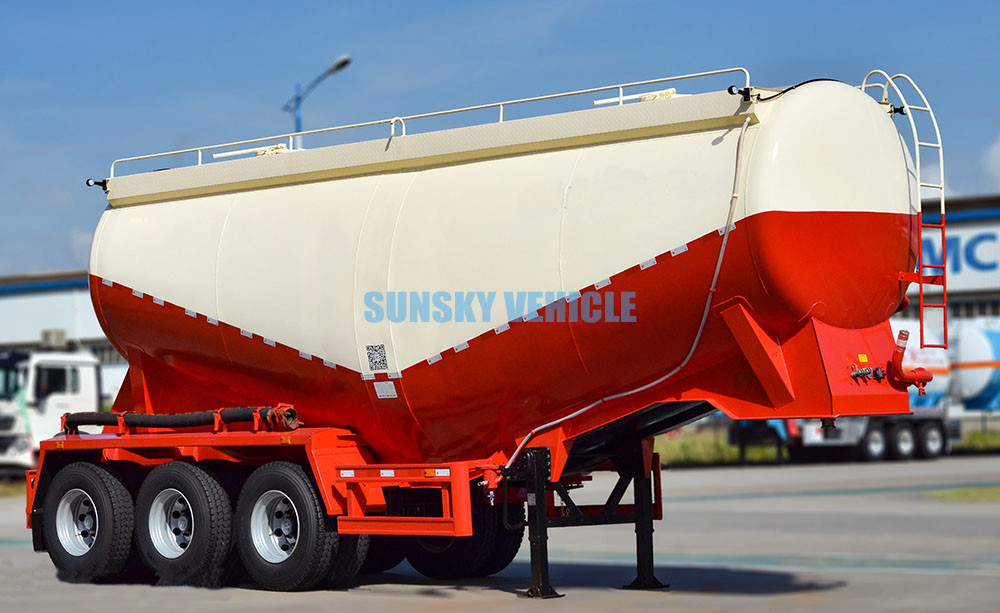

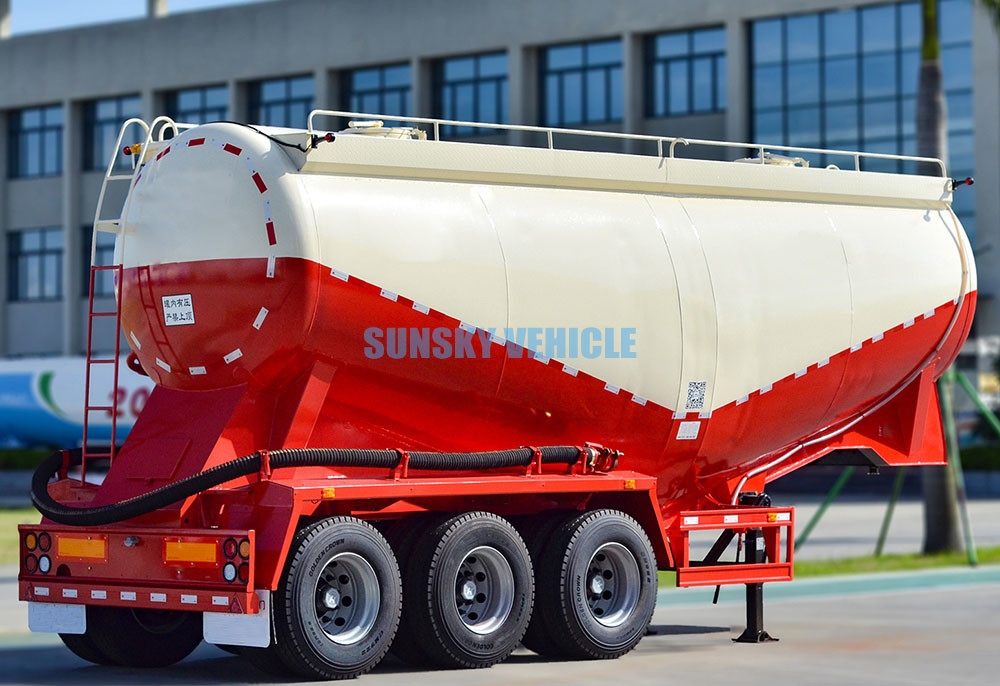

Images
Quality guarantee
1. More than 30 years experiences in trailer and truck
industrial,exported to more than 30 countries in Africa,Southeast
Asia.
2. Two years free warranty terms for the I beam,three to six month
free warranty terms for the Axles,suspension etc.
3. Spare parts support services.
4. Able to custom-built design as your requirement,ensure to meet
your local road regulation.
