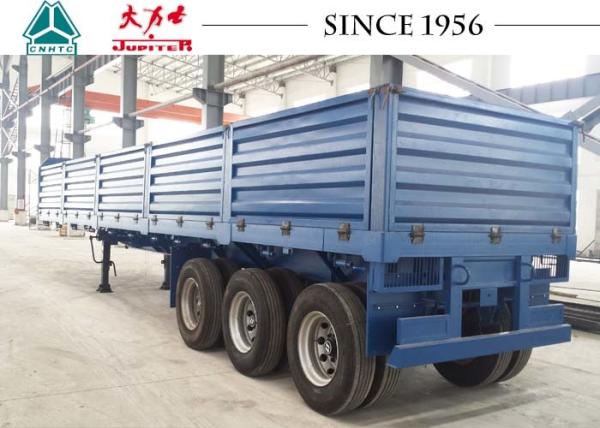

40FT 3 Axle Drop Side Trailer With 1.2 Meter Side Wall For Sale
Zambia
2 Units Drop Side Trailer Have Exported to Zambia,see
the successful case.
Flatbed trailers with drop side are versatile open trailers used to
transport a wide range of products and materials. Also known as
flat, float, flat deck, and high boy trailers, some of the common
products they are used to haul are: Flat steel, coiled steel,
channel steel, Rebar, Lumber, Pipe, Pre-cast concrete, Building
materials and container etc.
I. Feature
1. Major parts and components of the trailer are processed by
advanced equipment. Longitudinal beams are finished by automatic
tracking submerged arc welding machine; all the sub-assemblies are
shot-blasted to improve paint adhesiveness and are painted before
assembling.
2. To ensure optimal structure for cargo handling and larger
payload, the chassis is manufactured as a space frame structure of
high-strength steel, 16Mn steel welded longitudinal beam and
integrated cross member.
3. Use High performance domestic and imported axles with ABS system
optionally available can significantly increase driving safety.
4. High strength and impact resistance new type suspension is
adopted with patented rod connecting design. It can ensure better
performance in rough road condition and keep longer service life.
II. Specification
| 40FT 3 Axle Side Wall semi trailer |
| Dimension(L*W*H): | 12600*2500*2700 mm |
| The Height of Wall | 1200mm |
| Main frame: | Heavy duty and extra durability design; Opting for high tensible
low carbon alloy Q345B steel; I beam welded by automotive
arc-submerge process |
| No. of axle: | 3 |
| Payload(kgs): | 40000 |
| Tare weight(kgs): | 8500 |
| Kingpin: | JOST 2” |
| Landing gear: | JOST two-speed manual operation 19” |
| Tire size: | 12R22.5 |
| Rim size: | 9.00*22.5 |
| Axle: | Germany type 12 Tons |
| Suspension | Spring suspension with 8pcs of leafs spring |
| Brake system: | Dual line with WABCO brand Re-6 emergency relay valve, MBA brand
T30/30 air chamber, 46L air tank |
| Electric system: | One unit of 24V 7-pin ISO standard socket; with brake light, turn
light, reverse light, side light, reflector, fog light; one set of
6-pin standard cable |
| Container locks | 12(for 1x20GP,2X20GP,1X40HQ) |
| Painting: | S.A.2.5standard sandblasting; Two coat of anti-corrosion prime; one
coat of finish painting |
| Accessory: | One tool box; one set of standard tool |
III. Quality guarantee
1. More than 30 years experiences in trailer and truck
industrial,exported to more than 30 countries in Africa,Southeast
Asia.
2. Two years free warranty terms for the I beam,three to six month
free warranty terms for the Axles,suspension etc.
3. Spare parts support services.
4. Able to custom-built design as your requirment,ensure to meet
your local road regulation.
