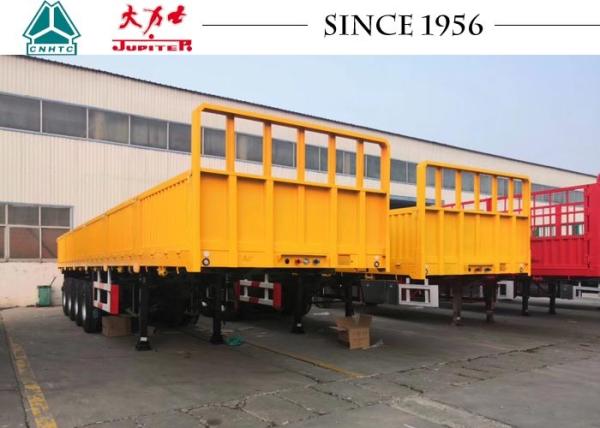

Durable Flatbed trailer with side wall, Heavy duty 4 Axle Drop Side
Trailer
Introduction of four axle drop side trailer for sale
Drop side trailers also called side wall trailers, can be used to
transport many kinds of objects, from boxes to bulk cargo. Its side
panel can be opened, which is more convenient to unload cargo. The
4 axle side wall trailer is widely used by transportation companies
in the logistics industry.
Advantage of China side wall trailer
1. Major parts and components of the trailer are processed by
advanced equipment. Longitudinal beams are finished by automatic
tracking submerged arc welding machine; all the sub-assemblies are
shot-blasted to improve paint adhesiveness and are painted before
assembling.
2. To ensure optimal structure for cargo handling and larger
payload, the chassis is manufactured as a space frame structure of
high-strength steel, 16Mn steel welded longitudinal beam and
integrated cross member.
3. The axle, tyre and other accessories are the well-known brand
like Fuwa,Bpw, Jost, Triangle brand which supplied by the domestic
and foreign professional manufacturers.
Specification of side wall trailer manufacturers
| 40FT 4 Axle Side Wall semi-trailer |
| Dimension(L*W*H): | 12500*2450*2000 mm |
| The Height of Wall | 500mm |
| Main frame: | Heavy duty and extra durability design; Opting for high tensile low
carbon alloy Q345B steel; I beam welded by automotive arc-submerge
process |
| No. of axle: | 4 |
| Payload(kgs): | 50000 |
| Tare weight(kgs): | 8200 |
| Kingpin: | JOST 2” |
| Landing gear: | JOST two-speed manual operation 19” |
| Tire size: | 12R22.5(17 sets) |
| Rim size: | 9.00*22.5(17sets) |
| Axle: | 4 Axle Fuwa brand 13 tons |
| Suspension | 3 Axle Spring suspension with 8pcs of leafs spring and one axle
airbag with lifting |
| Brake system: | Dual line with WABCO brand Re-6 emergency relay valve, MBA brand
T30/30 air chamber, 46L air tank |
| Electric system: | One unit of 24V 7-pin ISO standard socket; with brake light, turn
light, reverse light, side light, reflector, fog light; one set of
6-pin standard cable |
| Container locks | 12(for 1x20GP,2X20GP,1X40HQ) |
| Painting: | S.A.2.5standard sandblasting; Two coat of anti-corrosion prime; one
coat of finish painting |
| Accessory: | One tool box; one set of standard tool |
Quality guarantee of side wall trailer factory
1. More than 30 years experiences in trailer and truck industrial,
exported to more than 30 countries in Africa, Southeast Asia.
2. Twenty-Four month free warranty terms for the I beam, three to
six month free warranty terms for the Axles, suspension etc.
3. Spare parts support services.
4. Able to custom-built design as your requirement, ensure to meet
your local road regulation.
