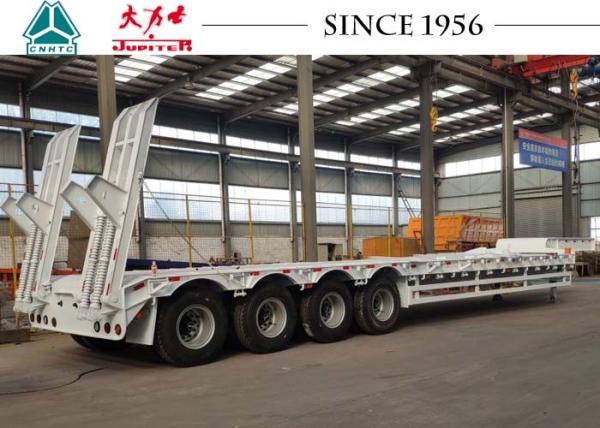

4 axle low bed trailer, 80 tons low bed trailer, 20/30/40ft low bed
trailer
1. Application of low bed trailer
Low bed semi-trailer (also call low boy semi-trailer ) is usually
used to transport heavy truck (e.g., Tractor truck, Buses and
special vehicles, etc.), rail vehicles, mining machinery, forestry
machinery, agricultural machinery( such as excavators, bulldozers,
loaders, paver, cranes etc.) and other heavy cargos.
The center of gravity of low bed trailer is lower, the stability
and safety is better, have stronger ability to transport over
height cargo and go through overhead obstacles.
II. Feature of 80tons low bed semi-trailer for sale
1. The series of Low bed trailer have flat type, concave beam type
and tire exposed structure, the I beam adopt straight or goose neck
type. The chassis of trailer is staircase type, have the
specification of high stiffness and strength.
2. The cargo platform of low bed trailer is designed as low as
possible, ensure the stability of transportation. It is suitable to
transport kinds of construction machinery, large equipment and
steel.
3. It adopts tri-axles balance type, biaxial balance type or rigid
suspension. The low bed trailer equipped with mass balance piece
between the front and rear leaf spring, which can make the
deflection of the front and rear leaf spring change by the same
amount, and make the front and rear axle are forced balance.
4. The whole low bed trailer adopts advanced computer-aided design
software to optimize the design the trailer flexibly and diverse,
and we can design the dimension of cargo platform as the user's
requirements to meet the transportation of various special goods.
III. Specification of 4 axle low bed semi-trailer
| 4 axle Low bed Semi-trailer |
| Feature: | Carry containers, bulk cargo, equipment |
| Dimension(L*W*H): | (9000-16000)*(2500-3200)*2500mm (Custom-built as your requirements) |
| Main frame: | Heavy duty and extra durability design; Durable low carbon alloy
Q345B steel |
| Model: | SS9800TDP |
| No. of axle: | 4 |
| Payload: | 80,000kgs |
| Kingpin: | The world-famous JOST brand bolt-in/welded type 3.5”/2” |
| Landing gear: | JOST brand two-speed manual operation 19” |
| Tire size: | 10R22.5 (Optional) |
| Rim size: | 7.5*22.5 |
| Axle: | Fuwa Brand 13 tons |
| Suspension | Spring suspension with 8pcs of leafs spring |
| Brake system: | Dual line Re-6 emergency relay valve, T30/30 air chamber, 46L air
tank |
| Electric system: | One unit of 24V 7-pin ISO standard socket; with brake light, turn
light, reverse light, side light, reflector, fog light; one set of
6-pin standard cable |
| Container locks | optional |
| Painting: | S.A.2.5standard sandblasting; Two coat of anti-corrosion prime; one
coat of finish painting |
| Accessory: | One tool box |
