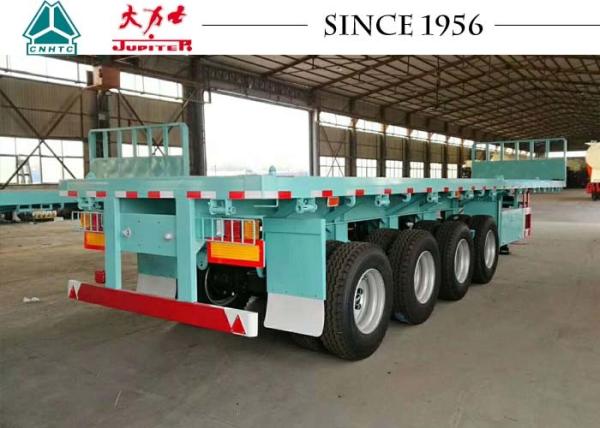

4 Axle Flatbed Trailer For Sale, 40Ft Flatbed Trailer For Container
Transport
What is the advantages of our flatbed trailer?
1. The I-beam and chassis of flatbed trailer is made of 16mm high
tensile . New design and technology make the structure more
reasonable.The paylod of 40ft container trailer can reach a higher
level.
2. The lightweight materials is optional by customers to reduce the
tare weight of trailer. Help you to carry more loads on the
trailers.
3. The flatbed trailer use high strength and impact resistance new
type suspension. Keep the trailers in longer lifespan.
4. Optional to install 2 to 4 axle as customers' requirements to
meet the road transport regulation in different countries.
How can we ensure the quality?
1. More than 30 years experiences in trailer and truck
industrial,exported to more than 30 countries in Africa,Southeast
Asia.
2. Two years free warranty terms for the I beam,three to six month
free warranty terms for the Axles,suspension etc.
3. Spare parts support services.
4. Able to custom-built design as your requirment,ensure to meet
your local road regulation.
Specification of flatbed container trailer
| Style | 4axle flatbed trailer |
| Dimension(L*W*H): | 12480*2500*1570 (20/40/45FT optional) |
| Main frame: | Heavy duty and extra durability design; Opting for high tensible
low carbon alloy Q345B steel; I beam welded by automotive
arc-submerge process |
| Payload(kgs): | 55000 |
| Tare weight(kgs): | 8100 |
| Kingpin | JOST 2" bolt-in |
| Landing gear | JOST 19" C200T |
| Tire size | 12R22.5 (17sets) |
| Rim size | 9.0*22.5 (17sets) |
| Axle | Fuwa brand 13ton ,4 axle |
| Brake system | Dual line with WABCO brand Re-6 emergency relay valve, MBA brand
T30/30 air chamber, 46L air tank |
| Air Chamber | MBA T30/30 |
| Electric system: | One unit of 24V 7-pin ISO standard socket; with brake light, turn
light, reverse light, side light, reflector, fog light; one set of
6-pin standard cable |
| Suspension: | Spring suspension /Airbag suspension |
| Container locks | 4/8/12(for 1x20GP,2X20GP,1X40HQ) |
| Painting: | S.A.2.5 standard sandblasting; Two coat of anti-corrosion prime;
one coat of finish painting |
