Detachable Gooseneck Lowbed Semi-trailer Have Exported to
Jamaica.

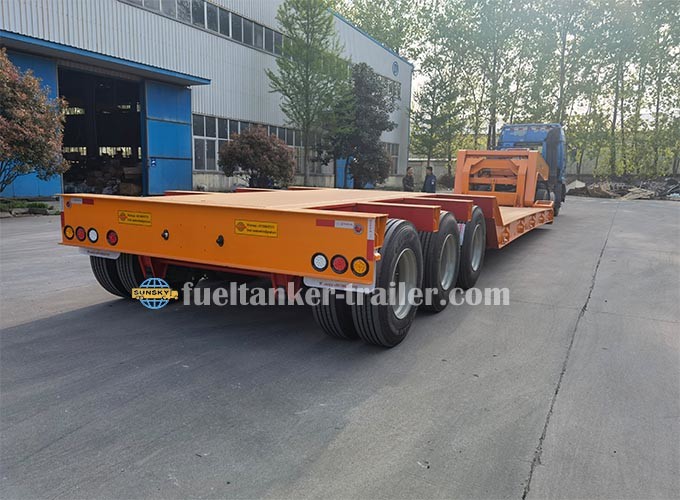

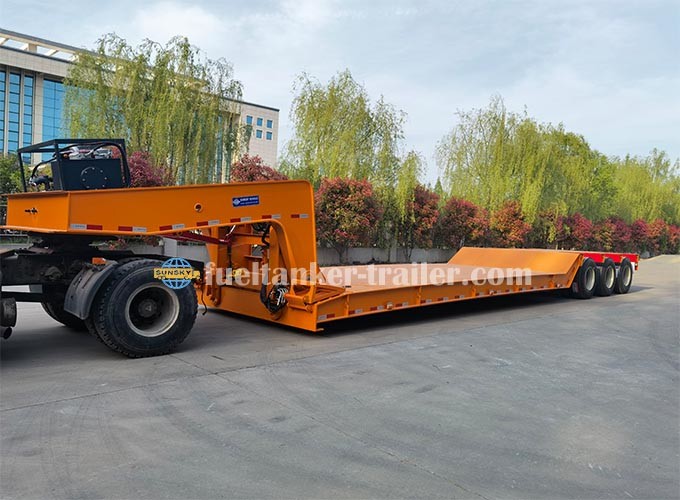

This detachable gooseneck low bed trailer is easy and convenient
for loading and unloading some special cargo.
Low bed trailer is a kinds of road transport trailer truck to carry
kinds of construction equipment or abnormal cargo like
excavators,road roller, Loader etc.. The low bed trailer payload
can be range from 30 tons to 200 tons. The low bed trailer type
have Straight platform type. U Shape platform type(Also called
tires exposed).
Design
The low bed trailer adopts large gooseneck structure, low loading
platform and gravity, high road ability, big loading space; it’s
suitable for transportation of large mechanical devices,
large-scale cargo. It can be designed to a straight beam type (flat
cargo deck) and concave Beam type (tire exposed) with hydraulic and
spring ramps.
Material
The main frame is made of 16Mn high-tensile steel, reasonable
structure, superior carrying capacity and no permanent deformation;
It can be reinforced according to using requirement.
Performance
The axle,tyre and other accessories are the well-known products
which supplied by the domestic and foreign professional
manufacturers.The quality can keep better.
Loading
The continuous improvement of structure makes it much accord with
practical loading and unloading requirements. The low bed trailer
can be custom-built as your requirements. The payload of low bed
trailers from 30 tons to 200 tons.
Quality guarantee
More than 30 years experiences in trailer and truck
industrial,exported to more than 30 countries in Africa,Southeast
Asia. Two years free warranty terms for the I beam,three to six
month free warranty terms for the Axles,suspension etc. Spare parts
support services is available,We able to design and produce the low
bed trailer as your requirement,ensure to meet your local road
regulation.
SPECIFICATION

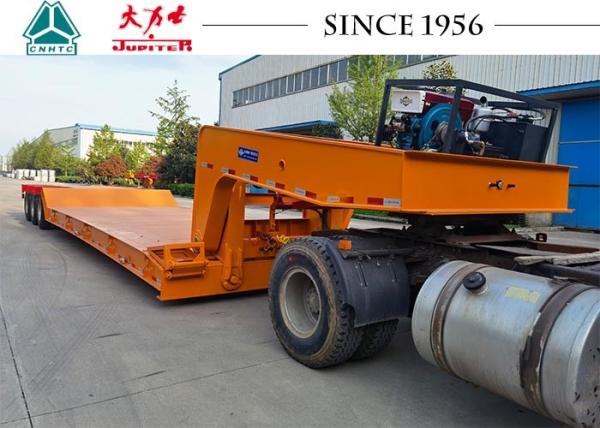

| 3 Axle 70 Tons detachable lowbed trailer |
| Dimension(L*W*H): | About 15690*3200*1800mm |
| Cargo platform size | 6700*3200 mm |
| No. of axle: | 3 |
| Kingpin | 3.5inch, 90# bolt in type |
| Payload: | 70 Tons |
| Tire size: | 12R22.5 (12 sets) |
| Rim size: | 9..00-22.5 (12 sets) |
| Axle: | 16 Tons, 3 Axle |
| Suspension | Spring suspension |
| Brake system: | WABCO brand Re-6 emergency relay valve |
| Electric system: | One unit of 24V 7-pin ISO standard socket; with brake light, turn
light, reverse light, side light, reflector, fog light; one set of
6-pin standard cable |
| Painting: | Two coat of anti-corrosion prime; one coat of finish painting |
| Accessory: | With diesel engine power pack and removable hydraulic gooseneck |
| Loading/Shipping idea: | Load by RoRo or bulk ship |
We can build the trailers according to customer’s design,
requirement and budget. Different specification cost different price. |
